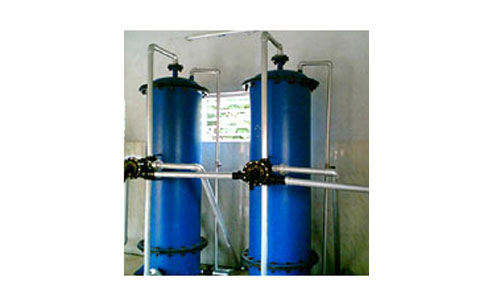

PRODUCT DETAILS: SOFTENING PLANT

DESCRIPTION:  AAT A (chemical) water softener is a device or a substance, that remove or renders inactive and isolate minerals, such as Calcium, Magnesium. Water containing dissolved calcium and magnesium in amount greater than 120mg./1 is considered hard, this water destroys the detergent property of soaps. On heating & cooling, it forms scales which corrodes. This chemical softener is made using premium quality of raw materials and is widely demanded in the global markets. They can also be designed as per the required technical specifications and are easy to install.

APPLICATION

• Boiler Feed
• Process water in textile mills
• Cooling water treatment
• Air conditioning plant
• Food processing
• Hotels, hospitals & Laundry
• RO Pre Treatment

Scope of supply

• One vertical mild steel pressure vessel with dished end, internally painted with epoxy/FRP vessel. Mild steel vessel will be given two coats of red oxide primer on the outside.
• One set of internals for the above comprising of raw water distribution and treated water collecting system.
• One set of frontal pipe work with valves
• One charges of resins.
• One brine measuring tank.
• One set of regeneration pipe work with ejector assembly.
• One hardness test kit.
• One set inlet and outlet pressure gauges and sample valves.
